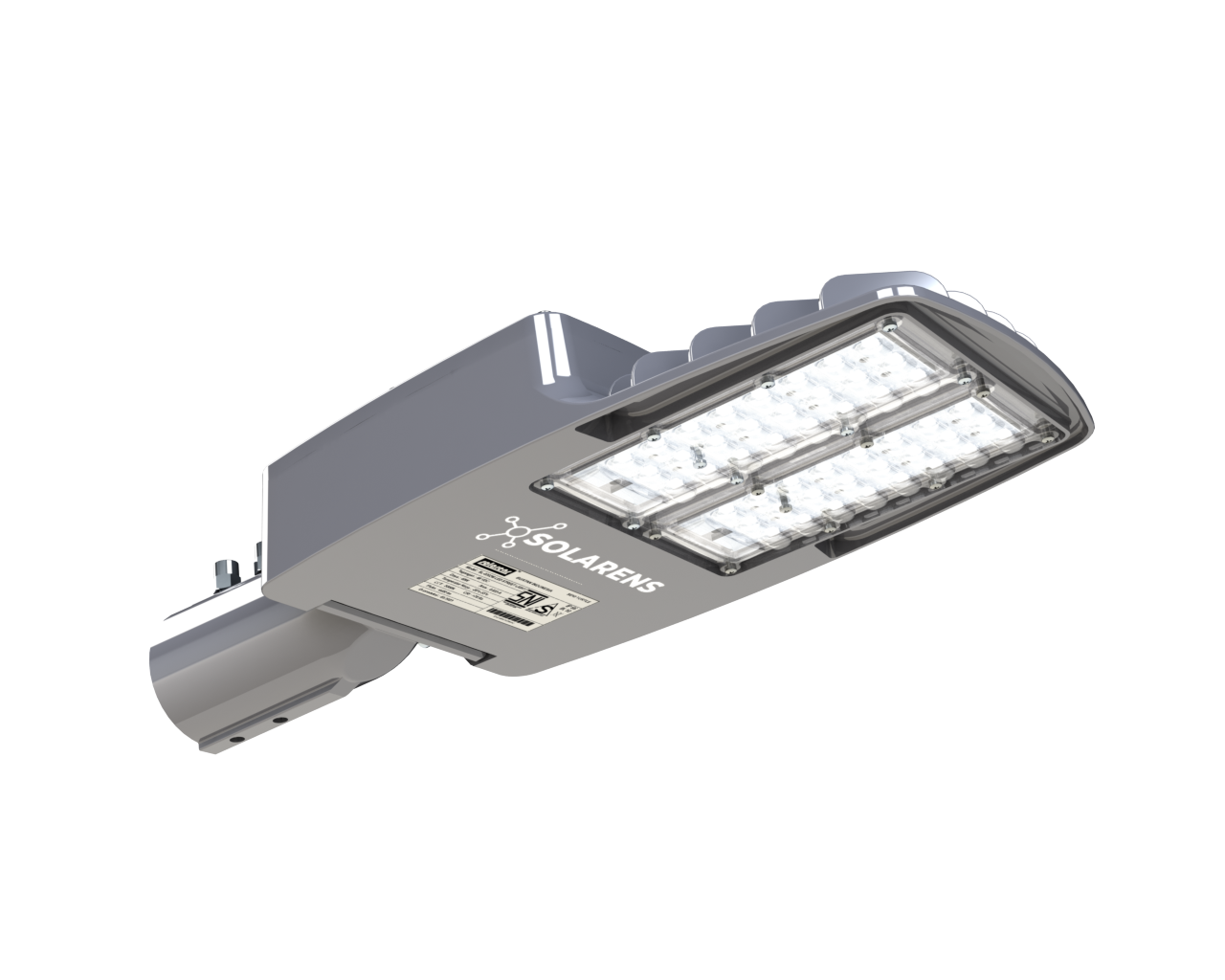

LED Street Light 50-90W – Turtle Series

Deskripsi

GENERAL SPECS. :

• Programmable output power by NFC
• Digital dimming,ON to OFF with
• Standby power approx.0.5W
• Output lumen compensation
• Operational time, end of life indicator
• LED module over temperature protection

MECHANICAL SPECS :

• Body material : full Al die casting
• Pole bracket dia. : 65mm (2″ pipe)Body thickness : avrg. 10mm
• Dimension : 467x207x88mm (LxWxH)Weight : 3.1 kg +- 500 g
• Secondary lens/LED cover : PMMA
• Hardware : stainless steel SUS-304
• Painting : powder coating
• Ingress /Impact Protection : IP-66 /IK-10
• Mounting type : side entry, post top

ELECTRICAL SPECS :

• LED Driver : Inventronics EUMseries/Meanwell
• Nominal input : 100 ~ 277Vac
• Operating Freq : 50/60Hz
• Rated Power : 50/60/70/80/90W
• Power Factor : >90%
• THD : <20%
• Surge Protection: 10KV

PHOTOMETRIC SPECS :

• LED Type: Lumileds/Luminus SMD 5050
• System Efficacy : >150 lm/w
• CCT (+_250K) : 5000K (CCT lain 3000/ 4000/5000/6500K tersedia sesuai permintaan)
• CRI : >70Ra
• Beam Angle : wide angle

ENVIRONMENT SPECS. :

• Operating temp. : -20C ~ 55C
• Humidity : 10 ~ 90RH
